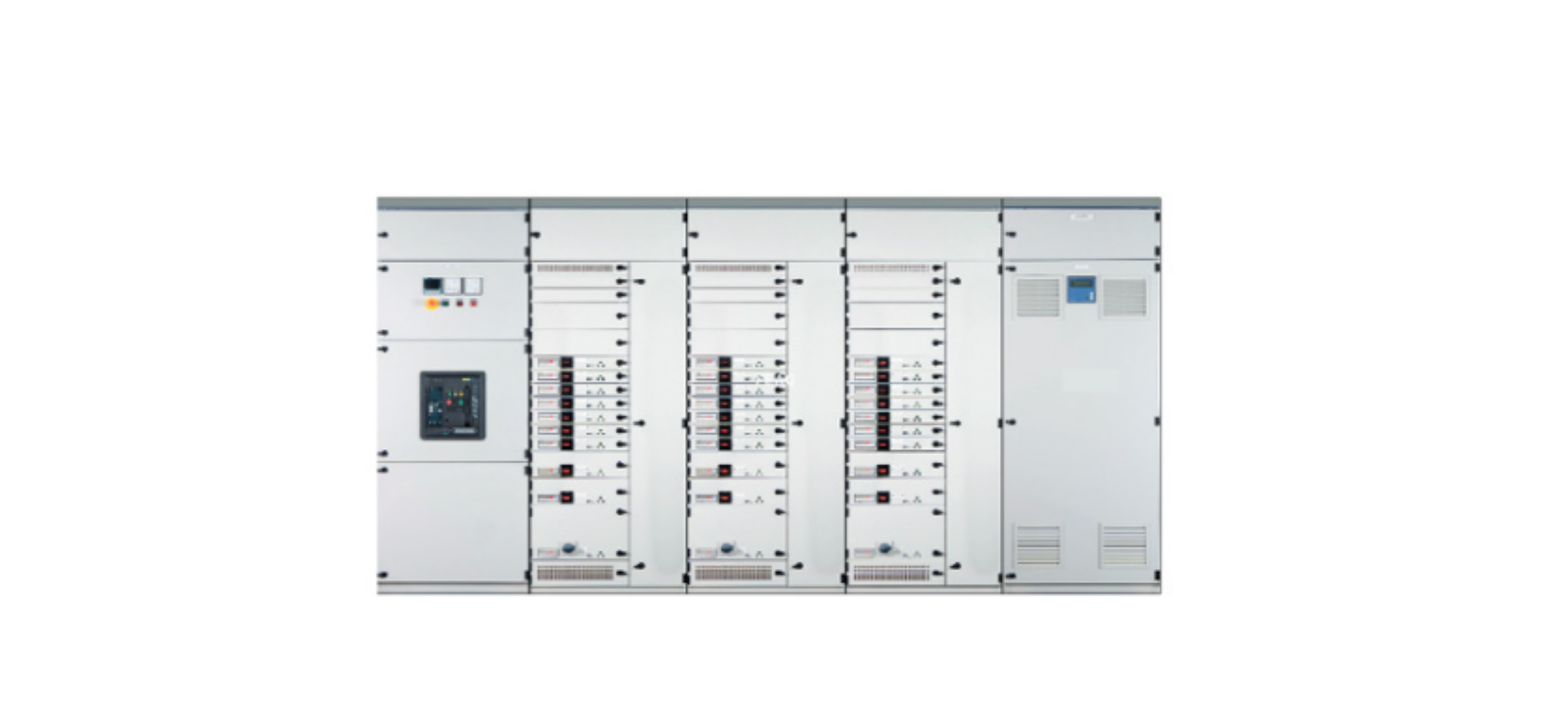

Draw-Out Modular Panel

Name: Draw-Out Modular Panel
Brand: G R INFRAPROJECTS LTD
Price: 500000 INR
Availability: InStock

Price 500000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Draw-Out Modular Panel Specification

Operating Voltage
415V AC

Cover Material
CRCA Steel

Rated Current
Up to 4000A

Base Material
Mild Steel

Way
Multi-way

Protection Level
IP42/ IP54

Product Type
Draw-Out Modular Panel

Material
Sheet Metal

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hertz (HZ)

Maximum Output Current
Up to 4000A

Dimension (L*W*H)
Customized as per requirement

Warranty
Yes

Application
Industrial Power Distribution

IP Rating
IP42/IP54

Display Type
Analog/Digital

Busbar Rating
Up to 4000A

Busbar Material
Electrolytic Copper / Aluminium

Wiring
As per IS regulations

Door Locking Mechanism
Three-point locking

Modularity
Fully Modular design for easy expansion

Operating Temperature
-10C to +50C

Earthing
Dual fully bolted earthing system

Compliance
Form 2, 3, or 4 construction as per IEC

Seismic Resistance
Up to Zone IV

Panel Mounting
Floor Standing

Cable Entry
Top/Bottom

Finish Type
Epoxy Polyester Powder Coating

Draw-Out Modular Panel Trade Information

Minimum Order Quantity
1 Number

FOB Port
requirement based

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Per Month

Delivery Time
30 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
no pack

Main Export Market(s)
Asia

Main Domestic Market
All India

About Draw-Out Modular Panel

Draw-Out Modular Panel is a liquid used in diesel-powered cars and equipment to minimize harmful emissions, namely nitrogen oxides (NOx), which are toxic pollutants. DEF is a key factor in minimizing the environmental footprint of diesel engines by highly diminishing harmful NOx emissions, which are responsible for air pollution and health problems. This assists diesel cars meet stringent emissions standards, making them meet government requirements for NOx reduction. These panels enable you to add, replace, or reconfigure modules as necessary, offering a high level of flexibility in system design. Draw-Out Modular Panel provide efficiency, safety, flexibility, and cost savings, making them a worthwhile option for electrical system management.

Technical Details

Flexible and Customizable Power Distribution

Designed to accommodate growth, this fully modular panel system allows easy expansion and modification. Customization options are available for dimensions, ratings, and configurations, ensuring compatibility with diverse industrial applications and future scalability without system interruptions.

Advanced Safety and Compliance

The panel adheres to global standards (IEC 61439 / IS 8623), with seismic resistance up to Zone IV and IP42/IP54 enclosures for reliable performance in challenging environments. Features like a three-point door locking system and dual earthing provide added protection, while form 2, 3, or 4 construction enhances operational safety.

FAQ's of Draw-Out Modular Panel:

Q: How is the Draw-Out Modular Panel installed and customized for specific requirements?

A: The panel is designed for floor standing installation and can be customized in dimensions (L*W*H) based on project specifications. Its modular construction simplifies on-site assembly, expansion, and configuration according to unique power distribution needs.

Q: What materials and finishes are used in the panel to ensure durability and corrosion resistance?

A: The panel utilizes sheet metal and CRCA steel as its base, with an epoxy polyester powder coating and a grey surface finish. These materials deliver robust mechanical strength and superior resistance to industrial environments and corrosion.

Q: When is this panel recommended for use in industrial applications?

A: This draw-out modular panel is ideal for industrial power distribution where high current ratings (up to 4000A), multi-way configurations, and strict compliance with safety and operational standards are required, especially in environments prone to seismic activity.

Q: Where can cable entries be made in this modular panel system?

A: The modular panel is designed for flexible cable management, offering both top and bottom cable entry points. This adaptability streamlines installation and integration with existing power infrastructure.

Q: What process ensures the panel's safety and regulatory compliance?

A: The panel is manufactured and tested according to IS and IEC standards (IEC 61439 / IS 8623), incorporates fully bolted earthing, a three-point locking door mechanism, and is built for seismic resistance up to Zone IV, ensuring comprehensive compliance and safety.

Q: How does the modularity of the panel benefit ongoing operations and maintenance?

A: The fully modular design facilitates future upgrades, easy maintenance, and seamless expansion without major downtime. Individual sections can be serviced or replaced without affecting the remaining system.

Q: What advantages does the dual earthing system provide for industrial users?

A: The dual fully bolted earthing system enhances electrical safety, reduces the risk of faults, and assures reliable grounding, providing peace of mind for operators and compliance with industry safety standards.

Tell us about your requirement
